SophCyte® Changbai Cell Sorting Platform

With the basic function of cell sorting, SophCyte® Changbai can integrate operation of cleaning and sorting by equipping cleaning and centrifugation module. It also has functions of authority management, data tracking and process parameter optimization, and a remote operation port is preseted.


Product Instruction

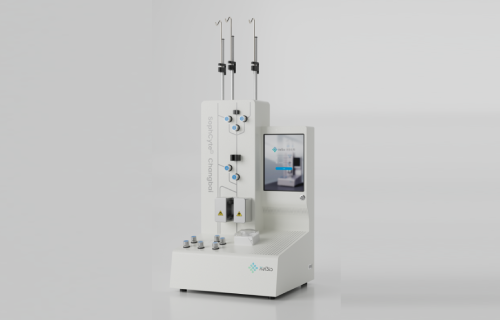

SophCyte® Changbai, the cell separation platform, is an automated system based on magnetic technology. With simple installation of disposable pipeline kit and parameter setting, the platform can positively select or deplete target cells aseptically. The entire process is safe and efficient, with high product purity, high recovery rate, high cell viability, and good repeatability. In addition to the basic function of cell separation, flexible setting and optimization of parameters or process according to the process need is also available. Meanwhile, there are also functions of hierarchical management of permissions, electronic records and audit tracking, as well as a preseted remote operation port.



Extensive Application: Various cells, including T cells, NK cells, hemopoietic stem cells could be separated by the platform.

Powerful Function: The obtained cells have high viability and purity.

Easy Operation: One screen monitoring, data-driven tracking and remote control.

Customized Program: The built-in program is highly flexible and customized based on customer needs.

Fully-closed System: Meets GMP manufacturing requirements.


Basic parameters

Equipment size

460×490×1300mm(d×w×h)

Weight

45kg

Power supply

220VAC, 50/60Hz

Rated power

400W

USB interface

3

Ethernet interface

100 Mbps Ethernet port

Monitor

12.1” touch screen

Operating system

Linux

Software functions

Built-in customized programs

Pipeline consumables

Disposable pipeline consumables

Supporting reagents

Various sorting reagents can be used together

Cell magnetic sorting

Enrichment and Depletion Selection

Starting Sample

Leukopak, Whole Blood, PBMC
